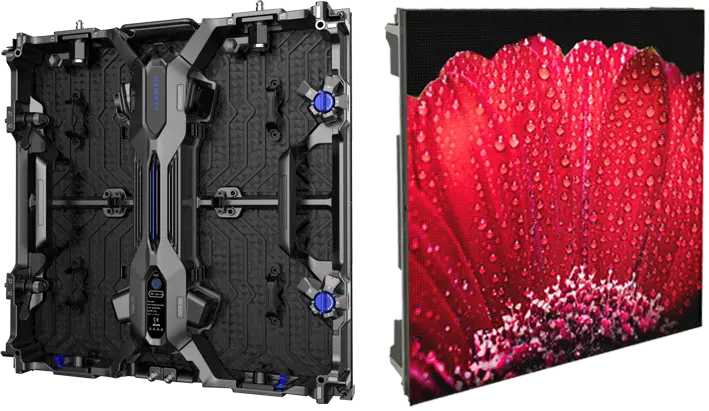

W Series
- Indoor Outdoor Rental LED Display：
- 1. Available Indoor and Outdoor(For W2 ,W3).
- 2. High Protection.
- 3. Modules with Different Pixel Pitch can be Interchangeable.
| Model | W1.9 | W2.3 | W2.6 | W2.9 | W3.9 | W2 | W3 | W4 |
| Pixel Pitch (mm) | 1.9 | 2.3 | 2.6 | 2.9 | 3.9 | 2.9 | 3.9 | 4.8 |
| Pixel (Panel/dot) | 256*256 | 210*210 | 192*192 | 168*168 | 128*128 | 168*168 | 128*128 | 104*104 |
| Weight (Panel/kg) | 7.9 | 7.8 | 7.5 | 7.5 | 7.5 | 8.5 | 7.7 | 7.7 |
| Brightness(nit) | 800 | 1000 | 1000 | 1000 | 1000 | 4000 | 4500 | 4500 |
| Size (Panel/mm) | 500*500*80 | |||||||
| Material | Die casting Aluminum | |||||||
| Gray scale (bit) | 14-16 | |||||||
| Refresh rate(Hz) | 3840 | |||||||
| Power Max./Avg. (W/㎡) | 400/133 | 512/170 | 488/163 | 488/163 | 488/163 | 615/205 | 650/216 | 650/216 |
| IP Rating (Front/Rear) | IP30/IP30 | IP65/IP54 | ||||||
| Inner arc | 0° 6° 12° | |||||||
| Outer arc | 0° 3° | 0° 3° | 0° 3° | 0° 3° | 0° 3° 6° | 0° 3° | 0° 3° | 0° 3° 6° |
| Installation/Maintenance | Front & Rear | |||||||
| One person operation | √ | |||||||
Available at Indoor and Outdoor(For W2 ,W3).
- High refresh IC, 3840Hz；2 kinds of masks, respectively for different environmental requirements (Only for W3).
- The high-order energy-saving IC is used to refresh the level above 3840Hz; in addition, W2 and W3 are equipped with different hoods, capable of realizing indoor and outdoor use, reducing the purchasing cost of the customers.
High Protection.
- Corner protector design.
- Bottom protection.
- Safety rope protection.
- The rubber ring waterproof structure around the module signal socket provides perfect waterproof effect, unique waterproof ring design and lateral squeezing and waterproofing, thus its waterproof effect is not affected even with the reduction of magnetic force of the magnet after long-time use.
Modules with Different Pixel Pitch can be Interchangeable.
- The product platform has good interchangeability, and can meet the customer demand for clarity by randomly replacing different modules.
